3WT

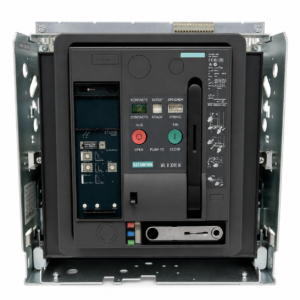

SENTRON 3WT circuit breaker protection.
Flexible protection parameter settings: Trip parameters can be adjusted according to the protection requirements of upstream and downstream power distribution systems, facilitating selective and graded protection.
Fixed/Removable Design: Offers both fixed and removeable installation options. Removeable circuit breakers facilitate maintenance, testing, and replacement, reducing equipment maintenance time.
3-Pole/4-Pole Configuration: The appropriate number of poles can be selected based on the low-voltage power distribution system and neutral line protection requirements.
Modular Accessory System: Configurable with auxiliary contacts, alarm contacts, shunt trip units, undervoltage trip units, electric energy storage mechanisms, closing coils, and other accessories.
Remote Operation Support: Remote closing, opening, and automated control of the circuit breaker can be achieved through the electric operating mechanism and control accessories.
Mechanical/Electrical Interlocking: Applicable to dual-power supply, incoming line and bus tie power distribution schemes, etc., with corresponding interlocking methods to prevent simultaneous closing that is not permitted, improving operational safety.
Clear Status Indication: Displays circuit breaker opening/closing, energy storage, and related operating status, allowing on-site personnel to quickly assess equipment operation.
Compact Structure: A compact design meets high-current breaking and protection requirements, optimizing internal space in low-voltage switchgear.
Reliable Operation and Convenient Maintenance: Mature operating mechanisms and modular accessory design facilitate inspection and maintenance, making it suitable for power distribution systems requiring long-term continuous operation.
3WT Core Product Selling Points: High breaking capacity • Electronic protection • Flexible parameter settings • Fixed/removable • Modular accessories • Remote operation • Safety interlocking • Compact structure • High reliability
Typical Applications: Suitable for transformer low-voltage side main incoming lines, bus couplers, high-capacity feeders, industrial power distribution, commercial buildings, and general low-voltage switchgear assemblies.
