HVX40.5-K
HVX 40.5/K Product Characteristics
40.5 kV Voltage Rating: Suitable for 40.5 kV AC power distribution systems, applicable to substations, industrial enterprises, energy and infrastructure projects.
Vacuum Arc Extinguishing Technology: Employs a vacuum arc-extinguishing chamber for current interruption, featuring rapid arc extinguishing, strong dielectric recovery capability, and minimal contact wear.
High Short-Circuit Breaking Capacity: Reliably interrupts short-circuit fault currents in the system, improving the safety and reliability of the power distribution network; actual breaking parameters should be based on the specific model nameplate or technical datasheet.
High Insulation Level: Designed for the insulation requirements of 40.5 kV systems, it can withstand specified power frequency and lightning impulse voltages, suitable for higher voltage level power distribution applications.
Long Mechanical Life: Optimized operating mechanism combined with vacuum arc-extinguishing technology meets the requirements for long-term operation and repeated opening and closing operations.
Low Maintenance Design: The vacuum arc-extinguishing chamber adopts a sealed structure, eliminating the need for replenishing oil, SF₆, or other arc-extinguishing media, thus reducing daily maintenance work.
Reliable energy storage operating mechanism: Typically employs a spring energy storage mechanism, which can be configured with electric energy storage to achieve stable and rapid closing and opening operations.
Compact structural design: While meeting the requirements of 40.5 kV insulation distance and breaking capacity, the equipment structure is optimized for easy integration with medium-voltage switchgear.
Comprehensive safety interlocking: Can form mechanical and electrical interlocks with switchgear trolleys, grounding switches, cabinet doors, etc., reducing the risk of misoperation.
Flexible accessory configuration: Can be configured with shunt trip units, undervoltage trip units, closing coils, auxiliary contacts, electric energy storage mechanisms, and interlocking devices according to project requirements.
High operational reliability: Suitable for power systems and industrial power distribution applications with high requirements for power supply continuity and equipment reliability.
Wide application range: Can be used for the control and protection of circuits in transformers, feeders, busbars, power generation systems, and large industrial loads.
HVX 40.5/K Key Selling Points:
40.5 kV high insulation level
· Vacuum arc extinguishing
· High short-circuit breaking capacity
· Long service life
· Low maintenance
· Reliable operating mechanism
· Comprehensive safety interlocks
· Flexible configuration
Description
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

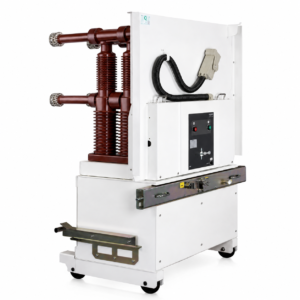

HVX12
12 kV Voltage Rating: Suitable for medium-voltage AC power distribution systems with a rated voltage of 12 kV, applicable to substations, industrial power distribution, infrastructure, etc.
Vacuum Arc Extinguishing Technology: Employs a vacuum arc extinguishing chamber for interruption, featuring low arc energy, minimal contact wear, and stable arc extinguishing performance.
High Short-Circuit Breaking Capacity: Designed for fault currents in medium-voltage systems, reliably interrupting short-circuit currents; the specific rated short-circuit breaking current needs to be confirmed based on the HVX model and configuration.
Long Mechanical Life: Optimized operating mechanism and vacuum arc extinguishing technology reduce mechanical and contact wear, suitable for power distribution applications requiring frequent operation.
Low Maintenance Requirements: The vacuum arc extinguishing chamber has a sealed structure, eliminating the need for replenishing the arc-extinguishing medium, reducing daily maintenance compared to traditional oil circuit breakers.
High Operational Reliability: Utilizes a mature energy storage operating mechanism for fast and stable opening and closing actions, and can be configured with electric energy storage and remote operation functions.
Modular Design: Compact structure, configurable with auxiliary contacts, shunt trip units, undervoltage release units, interlocking devices, and other accessories depending on the switchgear configuration.
Withdrawable Design: Some HVX configurations feature a removable/withdrawable structure, facilitating circuit breaker testing, maintenance, and replacement, improving switchgear maintenance convenience.
Comprehensive Mechanical Interlocking: Works seamlessly with the switchgear trolley, grounding switch, and cabinet doors to form a comprehensive safety interlocking system, reducing the risk of misoperation.
Strong Environmental Adaptability: Suitable for medium-voltage power distribution environments in industry, power, energy, and infrastructure, meeting long-term continuous operation requirements.
Wide Application Range: Can be used for the control and protection of transformers, busbars, motors, capacitor banks, and general medium-voltage feeders.

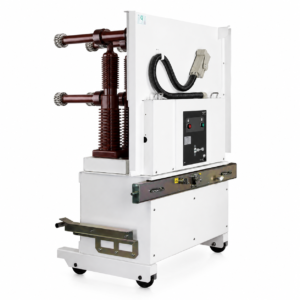

HVX24
HVX 24 Product Features
24 kV Voltage Rating: Suitable for medium-voltage AC power distribution systems up to 24 kV, meeting the needs of industrial, power, and infrastructure projects.
Vacuum Arc Extinguishing Technology: Utilizes a vacuum arc extinguishing chamber, featuring strong arc extinguishing capability, low contact wear, and rapid dielectric recovery.
Reliable Short-Circuit Breaking Performance: Capable of quickly interrupting short-circuit fault currents in the system, improving the operational safety of medium-voltage power distribution systems; the specific breaking capacity depends on the model configuration.
Long Mechanical and Electrical Life: Vacuum arc extinguishing technology, combined with a mature operating mechanism, is suitable for applications requiring long-term operation and high operating frequencies.
Low Maintenance Design: The vacuum arc extinguishing chamber employs a sealed structure, eliminating the need for replenishing the arc-extinguishing medium, reducing daily inspection and maintenance workload.
Energy Storage Operating Mechanism: Employs a reliable spring energy storage mechanism, which can be configured with electric energy storage for rapid and stable opening and closing operations.
Withdrawable/Removable Structure: Some HVX 24 solutions can adopt a removable structure, facilitating circuit breaker removal, testing, maintenance, and replacement.
Comprehensive Safety Interlocks: It can form mechanical/electrical interlocks with switchgear, grounding switches, cabinet doors, and handcart mechanisms to help prevent misoperation.
Compact Structure: Optimized for medium-voltage metal-armored switchgear, it facilitates compact switchgear design while ensuring insulation and breaking performance.
Flexible Accessory Configuration: It can be configured with shunt trip units, undervoltage trip units, auxiliary contacts, closing coils, electric energy storage mechanisms, and phase-to-phase interlocking devices.
Good Environmental Adaptability: Suitable for medium-voltage power distribution environments such as power, industry, energy, transportation, commercial buildings, and infrastructure.
Wide Application Range: It can be used for transformer protection, feeder protection, busbar control, motor control, and control and protection of other medium-voltage loads.
Product Selling Points Summary: The HVX 24 features reliable vacuum breaking performance, high short-circuit breaking capacity, long service life, low maintenance requirements, flexible accessory configuration, and comprehensive safety interlocks, making it a reliable control and protection device for 24 kV medium-voltage power distribution systems.

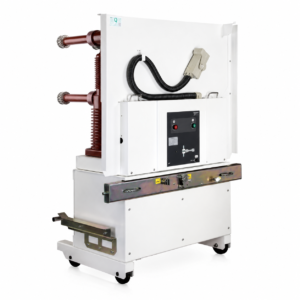

HVX24-K
