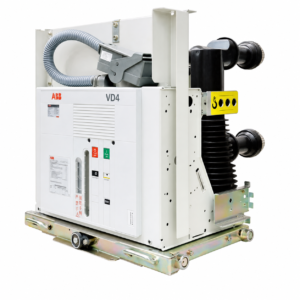

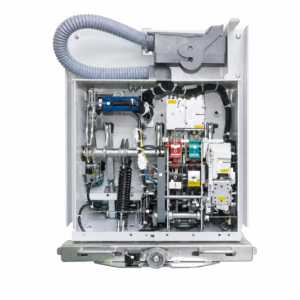

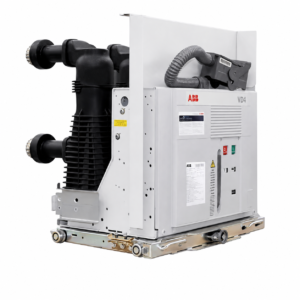

VD4-17.5
Normal Operating Conditions
Ambient Air Temperature
• Maximum +40℃
• Average over 24 hours not exceeding +35℃
• Minimum (Indoor) -5℃
Note: -25℃ operating temperature option available.
Humidity
• Average relative humidity over 24 hours not exceeding 95%
• Average water vapor pressure over 24 hours not exceeding 2.2 kPa
• Average relative humidity over 1 month not exceeding 90%
• Average water vapor pressure over 1 month not exceeding 1.8 kPa
Altitude ≤1000 m.
Seismic Performance
Seismic intensity not exceeding magnitude 8.
Adaptability to Humid Tropical Climates
VD4 circuit breakers are designed/manufactured in strict accordance with standards and can be used in humid, hot, and high-salinity climates. All critical components are specially treated to withstand the corrosion of Class C ambient environments specified in EN 12500 class 5. The galvanizing process is carried out according to UNI ISO 2081 standard, classification number Fe/Zn 12, with a thickness of 12 μm, and color chromate passivation is performed according to UNI ISO 4520 standard.
Altitude: The insulating properties of air decrease with increasing altitude; therefore, the impact of this phenomenon on the external insulation of the switch must be considered when using it at high altitudes. The insulation inside the arc-extinguishing chamber is not affected, as its insulation capacity is guaranteed by vacuum.
If the switch is installed in an area above 1000 m altitude, the effect of altitude should be considered during the design phase of the insulation components.
In this case, a correction factor must be considered, which can be found in the chart on the right, based on the IEC 62271-1 standard. An example calculation based on the above correction principle is given below. Example:
• Installation Altitude:
• Rated Voltage:
• Power Frequency Withstand Voltage:
• Lightning Impulse Withstand Voltage:
2000 m
1 2 kV
4 2 kVrms
75 kVp
• Ka coefficient, found from the chart: Ka=1.13
From the above parameters, the components must be able to withstand (test conditions at zero altitude):
• Power Frequency Withstand Voltage: 42 x 1.13 = 47.5 kVrms
• Lightning Impulse Withstand Voltage: 75 x 1.13 = 84.7 kVp
The above calculations show that circuit breakers used in high-altitude areas must be able to withstand higher insulation level tests at zero altitude. For specific circuit breaker selection, please contact the manufacturer.
Description
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
HD4-40.5
The 40.5 kV VD4 vacuum circuit breaker is suitable for indoor switchgear systems with air insulation. Under normal operating conditions and within the circuit breaker's technical parameters, the VD4 vacuum circuit breaker can meet various operational requirements of the power grid under normal or fault conditions, including closing and interrupting short-circuit currents.
The vacuum circuit breaker exhibits excellent performance in applications requiring frequent operation and/or short-circuit current interruption. The VD4 vacuum circuit breaker meets the requirements for automatic reclosing and possesses extremely high operational reliability and service life.
The VD4 vacuum circuit breaker is available in both withdrawable and fixed installation types. Its basic structure is shown in Figures 3/1 and 3/2, and Figures 3/7 and 3/8.
1.2 Standards and Specifications
The manufacture of VD4 vacuum circuit breakers conforms to standards and specifications consistent with relevant publications of GB, IEC, and DIN VDE:
• GB/T 11022, IEC 62271-1, and DIN VDE 0670 part 1000, "Common Technical Conditions for Standards of High Voltage Switchgear and Controlgear"
• GB/T 1984 and IEC 62271-100 "High Voltage AC Circuit Breakers"
Meets E2, C2, M2 (10000 cycles) ratings
VD4-12
Normal Operating Conditions
Ambient Air Temperature
• Maximum +40℃
• Average over 24 hours not exceeding +35℃
• Minimum (Indoor) -5℃
Note: -25℃ operating temperature option available.
Humidity
• Average relative humidity over 24 hours not exceeding 95%
• Average water vapor pressure over 24 hours not exceeding 2.2 kPa
• Average relative humidity over 1 month not exceeding 90%
• Average water vapor pressure over 1 month not exceeding 1.8 kPa
Altitude ≤1000 m.
Seismic Performance
Seismic intensity not exceeding magnitude 8.
Adaptability to Humid Tropical Climates
VD4 circuit breakers are designed/manufactured in strict accordance with standards and can be used in humid, hot, and high-salinity climates. All critical components are specially treated to withstand the corrosion of Class C ambient environments specified in EN 12500 class 5. The galvanizing process is carried out according to UNI ISO 2081 standard, classification number Fe/Zn 12, with a thickness of 12 μm, and color chromate passivation is performed according to UNI ISO 4520 standard.
Altitude: The insulating properties of air decrease with increasing altitude; therefore, the impact of this phenomenon on the external insulation of the switch must be considered when using it at high altitudes. The insulation inside the arc-extinguishing chamber is not affected, as its insulation capacity is guaranteed by vacuum.
If the switch is installed in an area above 1000 m altitude, the effect of altitude should be considered during the design phase of the insulation components.
In this case, a correction factor must be considered, which can be found in the chart on the right, based on the IEC 62271-1 standard. An example calculation based on the above correction principle is given below. Example:
• Installation Altitude:
• Rated Voltage:
• Power Frequency Withstand Voltage:
• Lightning Impulse Withstand Voltage:
2000 m
1 2 kV
4 2 kVrms
75 kVp
• Ka coefficient, found from the chart: Ka=1.13
From the above parameters, the components must be able to withstand (test conditions at zero altitude):
• Power Frequency Withstand Voltage: 42 x 1.13 = 47.5 kVrms
• Lightning Impulse Withstand Voltage: 75 x 1.13 = 84.7 kVp
The above calculations show that circuit breakers used in high-altitude areas must be able to withstand higher insulation level tests at zero altitude. For specific circuit breaker selection, please contact the manufacturer.
VD4-24
The VD4 vacuum circuit breaker is suitable for indoor switching systems with air insulation. Under normal operating conditions and within the circuit breaker's technical parameters, the VD4 vacuum circuit breaker can meet various operational requirements of the power grid under normal or fault conditions, including closing and interrupting short-circuit currents.
Vacuum circuit breakers exhibit excellent performance in applications requiring frequent operation and/or short-circuit current interruption. The VD4 vacuum circuit breaker fully meets the requirements of automatic reclosing and possesses extremely high operational reliability and service life.
The VD4 vacuum circuit breaker can be installed in switchgear in a fixed, withdrawable, or frame-mounted manner.
VD4-40.5
The 40.5 kV VD4 vacuum circuit breaker is suitable for indoor switchgear systems with air insulation. Under normal operating conditions and within the circuit breaker's technical parameters, the VD4 vacuum circuit breaker can meet various operational requirements of the power grid under normal or fault conditions, including closing and interrupting short-circuit currents.
The vacuum circuit breaker exhibits excellent performance in applications requiring frequent operation and/or short-circuit current interruption. The VD4 vacuum circuit breaker meets the requirements for automatic reclosing and possesses extremely high operational reliability and service life.
The VD4 vacuum circuit breaker is available in both withdrawable and fixed installation types. Its basic structure is shown in Figures 3/1 and 3/2, and Figures 3/7 and 3/8.
1.2 Standards and Specifications
The manufacture of VD4 vacuum circuit breakers conforms to standards and specifications consistent with relevant publications of GB, IEC, and DIN VDE:
• GB/T 11022, IEC 62271-1, and DIN VDE 0670 part 1000, "Common Technical Conditions for Standards of High Voltage Switchgear and Controlgear"
• GB/T 1984 and IEC 62271-100 "High Voltage AC Circuit Breakers"
Meeting E2, C2, M2 (10000 cycles) ratings
VD4-AF
ABB VD4/AF Product Performance
1. High-Performance Vacuum Breaking Technology
Utilizing the vacuum arc-extinguishing principle, it can quickly extinguish the arc, providing excellent insulation recovery and breaking performance while reducing contact burn-off.
2. Reliable Short-Circuit Current Breaking Capacity
VD4/AF can be used for switching normal load currents in medium-voltage power distribution systems and can break fault currents according to the rated parameters of specific models, providing protection for lines, transformers, and other medium-voltage equipment.
3. High Mechanical Durability
The operating mechanism is designed for the long-term operation requirements of medium-voltage switchgear, meeting the requirements of frequent operation and long-term use. Specific mechanical life ratings and number of operations should refer to the technical datasheet for the corresponding VD4/AF model.
4. Stable Electrical Life
The contacts inside the vacuum interrupter operate in a vacuum environment, resulting in relatively less arc erosion of the contacts, which helps maintain stable breaking performance over a long period.
5. Fast and Stable Closing and Opening Performance: The circuit breaker operating mechanism can quickly complete closing and opening actions, and cooperates with the relay protection system to promptly disconnect faulty circuits after detecting short circuits or other faults.
6. Reliable Operating Mechanism: Utilizing an energy storage mechanical operating mechanism, it can be equipped with energy storage motors, closing coils, opening coils, auxiliary contacts, and other accessories, supporting both on-site and remote electrical operation.
7. Comprehensive Control and Protection Coordination Capabilities: It can cooperate with relay protection, measurement, and automation control systems to achieve functions such as fault protection, remote closing and opening, status feedback, and electrical interlocking.
8. Low Maintenance Workload: The vacuum interrupter uses a sealed design, eliminating the need for replenishing the arc-extinguishing medium. Under normal operating conditions, maintenance is mainly concentrated on the operating mechanism, transmission system, and auxiliary control circuits.
9. Applicable to Medium-Voltage Switchgear: The VD4/AF can be used in medium-voltage switchgear of corresponding designs, suitable for various circuits such as incoming lines, feeders, transformers, and industrial power distribution.
10. Wide Range of Typical Applications: Commonly used in medium-voltage power distribution systems in power distribution, substations, industrial production lines, steel, cement, mining, petrochemical, and infrastructure industries.
VD4/AF Core Performance Summary:
Vacuum arc extinguishing + Reliable short-circuit breaking + Long mechanical life + Stable operating mechanism + Low maintenance requirements + Compatibility with automated control
VD4-G
1. Vacuum Arc Extinguishing Technology: Utilizing a vacuum arc-extinguishing chamber for current interruption results in a short arc duration, minimal contact wear, and rapid recovery of dielectric insulation strength after interruption, contributing to long-term stable breaking performance.
2. Reliable Breaking and Protection Capabilities: Suitable for breaking and opening normal load currents in medium-voltage systems, and can be used in conjunction with relay protection devices to clear short circuits and other faults, providing control and protection for lines, transformers, motors, and other equipment.
3. Stable Mechanical Operation Performance: The operating mechanism exhibits good mechanical stability and consistent repeatability, meeting the long-term operational requirements of medium-voltage switchgear.
4. Long Mechanical and Electrical Lifespan: Vacuum arc extinguishing reduces contact erosion and lowers the maintenance requirements of the arc-extinguishing system, making it suitable for industrial applications with high demands for equipment reliability and lifespan.
5. Modular Structure Design: Employing a modular design concept, the circuit breaker body, operating mechanism, and auxiliary control components are rationally integrated, facilitating installation, inspection, and maintenance.
6. Comprehensive Mechanical and Electrical Interlocks
Corporate mechanical and electrical interlocks can be configured according to the switchgear design, reducing the risk of misoperation and improving the operational safety of medium-voltage power distribution systems.
7. Supports Electric and Remote Operation
Equipped with energy storage motors, closing coils, opening coils, auxiliary contacts, and other accessories, it can work in conjunction with relay protection and automation systems to achieve remote opening and closing and status feedback.
8. Low Maintenance Requirements
The vacuum interrupter is a sealed structure, requiring no additional gas or other arc-extinguishing media. Routine maintenance mainly focuses on the operating mechanism, mechanical transmission parts, and auxiliary control circuits.
9. Good Environmental Adaptability
Suitable for medium-voltage power distribution environments in industry, power, and infrastructure. Specific permissible temperature, altitude, humidity, and other operating conditions should be determined according to the ABB technical data for the corresponding VD4/G model.
10. Wide Application Range
Applicable to incoming lines, feeders, transformers, motors, and industrial power distribution circuits in medium-voltage switchgear, commonly found in power, steel, mining, cement, petrochemical, manufacturing, and infrastructure sectors.
Vmac
1. Vacuum Arc Extinguishing Technology: Utilizing a vacuum arc-extinguishing chamber for current interruption, it offers strong insulation and arc-extinguishing performance. The sealed structure of the vacuum arc-extinguishing chamber reduces the impact of the external environment on the arc-extinguishing system.
2. Reliable Breaking Performance: Vmax is primarily used for normal load operation and fault current interruption in medium-voltage power distribution systems. It can be used in conjunction with relay protection devices to protect against short circuits, overloads, and other abnormal conditions.
3. Long Mechanical and Electrical Lifespan: Vacuum arc-extinguishing technology reduces contact arc burn-out, and the mature operating mechanism is suitable for long-term operation, reducing maintenance work throughout the equipment's lifespan.
4. Compact Structural Design: The overall structure is compact, suitable for medium-voltage switchgear, and optimizes internal cabinet space while meeting insulation and breaking performance requirements.
5. Modular Design: Adopting a modular design concept facilitates installation, inspection, and maintenance, and can be configured according to specific switchgear and power distribution system solutions. 6. Fixed or Removable Installation Options Available
Depending on the specific Vmax model and switchgear configuration, fixed or removable installation methods are available to facilitate selection for various medium-voltage power distribution projects.
7. Comprehensive Mechanical Interlocking
Mechanical and electrical interlocks reduce the risk of misoperation. For removable configurations, interlocking with working positions, test positions, and other states can further enhance switchgear operational safety.
8. Supports Remote and Automated Operation
Configurable with trip coils, closing coils, energy storage motors, auxiliary contacts, and other accessories, it can integrate with relay protection and automated control systems to achieve remote tripping and closing, and status monitoring.
9. Low Maintenance Requirements
The vacuum interrupter requires no replenishment of the arc-extinguishing medium; routine maintenance primarily focuses on the operating mechanism, mechanical transmission components, and auxiliary control circuits.
10. Wide Range of Applications
Vmax can be applied to medium-voltage systems in industrial power distribution, power facilities, commercial buildings, and infrastructure for:
Power line protection
Transformer protection
Motor and industrial load protection
Medium-voltage switchgear incoming and feeder lines
Power distribution system control and protection
